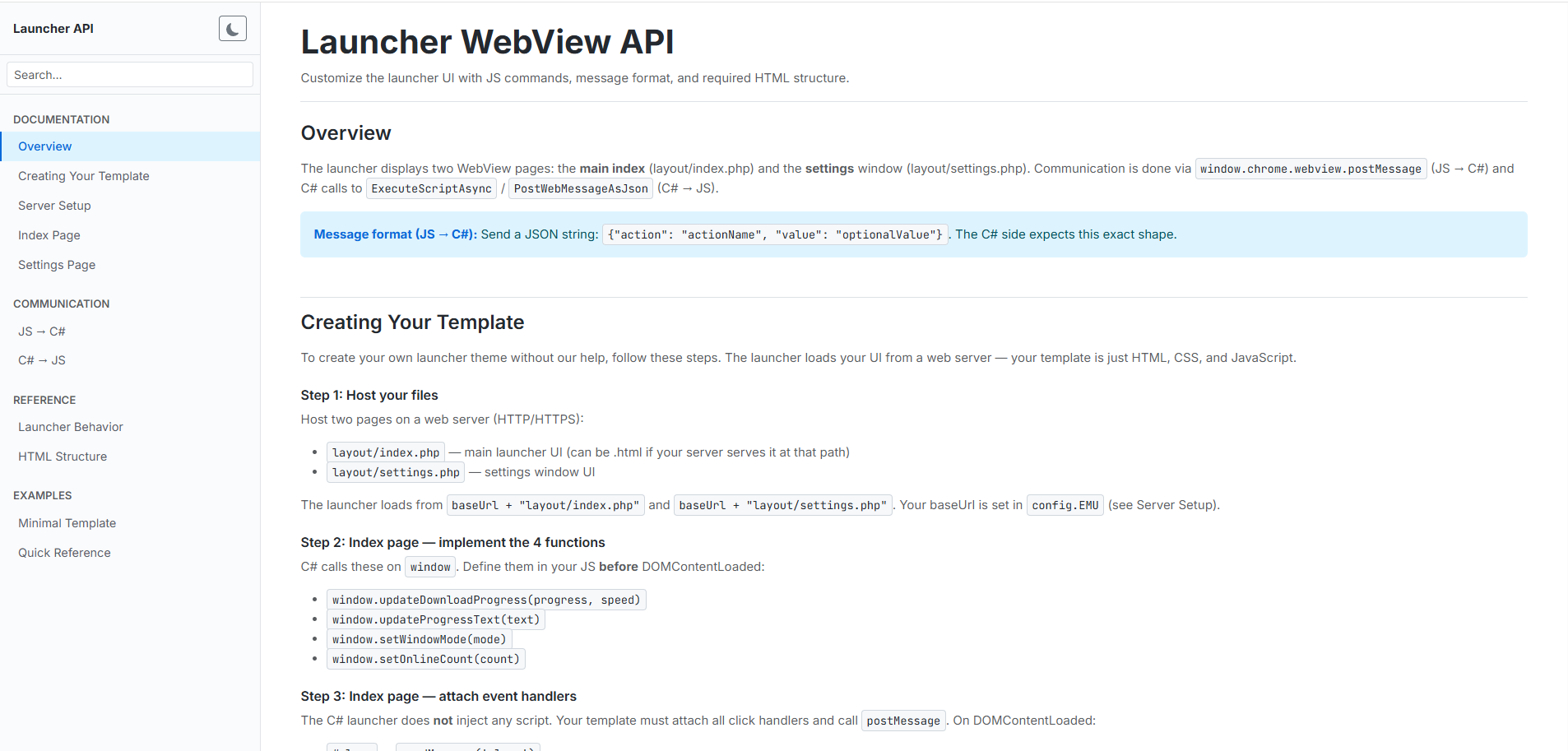

Launcher WebView API

Overview

The launcher displays two WebView pages: the main index (layout/index.php) and the settings window (layout/settings.php). Communication is done via window.chrome.webview.postMessage (JS → C#) and C# calls to ExecuteScriptAsync / PostWebMessageAsJson (C# → JS).

Creating Your Template

To create your own launcher theme without our help, follow these steps. The launcher loads your UI from a web server — your template is just HTML, CSS, and JavaScript.

Step 1: Host your files

Host two pages on a web server (HTTP/HTTPS):

• layout/index.php — main launcher UI (can be .html if your server serves it at that path)
• layout/settings.php — settings window UI

The launcher loads from baseUrl + "layout/index.php" and baseUrl + "layout/settings.php". Your baseUrl is set in config.EMU (see Server Setup).

Step 2: Index page — implement the 4 functions

C# calls these on window. Define them in your JS before DOMContentLoaded:

• window.updateDownloadProgress(progress, speed)
• window.updateProgressText(text)
• window.setWindowMode(mode)
• window.setOnlineCount(count)

Step 3: Index page — attach event handlers

The C# launcher does not inject any script. Your template must attach all click handlers and call postMessage. On DOMContentLoaded:

• #close → sendMessage('close')
• #minimize → sendMessage('minimize')
• #openSettings → sendMessage('openSettings')
• #openGame → sendMessage('openGame')
• #window (checkbox) → sendMessage(checked ? 'checked' : 'unchecked')
• Links: use class="openLink" on <a href="url">. On click, sendMessage('openLink', element.href)
• Window drag: bind mousedown on your title bar area. Exclude buttons/inputs. Call sendMessage('dragWindow')

Step 4: Settings page

Implement window.setSettings(obj) and window.setWindowMode(mode). On load, send getSettings. Listen for event.data.type === 'getSettings' and call setSettings(event.data.value). Bind change handlers for each field to send resolution, color, sound, music, username, language. Bind #saveSettings to sendMessage('saveSettings').

Step 5: Helper and message listener

Add a helper and wire the message listener:

function sendMessage(action, value = '') {
  window.chrome.webview.postMessage(JSON.stringify({ action, value }));
}
window.chrome.webview.addEventListener('message', event => {
  const d = event.data;
  if (d?.type === 'getSettings') window.setSettings(d.value);
  if (d?.type === 'windowMode') window.setWindowMode(d.value);
});

Server Setup

The launcher reads config.EMU in the exe directory. It must contain a Base64-encoded URL. Example:

baseUrl=<Base64 of your URL, e.g. "https://yourserver.com/launcher/">

The server must serve config.json at baseUrl + "config.json". Required keys:

• updateHost — must equal baseUrl (no trailing slash). Used for validation.
• lastUpdate — number. Used for update check.
• indexWidth, indexHeight — main window size in pixels.
• settingsWidth, settingsHeight — settings window size.

Your server must also serve checksum.json for the game launch flow. File paths loaded by the launcher:

• {baseUrl}config.json
• {baseUrl}layout/index.php
• {baseUrl}layout/settings.php
• {baseUrl}updates/{N}.exe (for updates)
• {baseUrl}checksum.json

Index Page (Main Launcher)

Functions your page must implement

C# calls these functions. Implement them on window.

Optional: window.initializeConfig(config) — C# may send config JSON; store it for your UI.

Settings Page

Functions your page must implement

On load, send "getSettings". C# responds with { type: "getSettings", value: { ... } }. Use window.chrome.webview.addEventListener('message', ...) and call setSettings(event.data.value) when event.data.type === 'getSettings'.

Messages: JS → C#

Send with: window.chrome.webview.postMessage(JSON.stringify({ action: "actionName", value: "..." })). For openLink, pass the full URL as value.

C# → JS

Functions the launcher calls on your page.

• Index: setWindowMode, updateDownloadProgress, updateProgressText, setOnlineCount. Plus JSON for getConfig and index-data.
• Settings: setSettings, setWindowMode. Response to getSettings has type: "getSettings" and value: { ... }.

Launcher Behavior

Main.exe exit when launcher closes

When the user closes the launcher, if main.exe is still running, the launcher sends WM_CLOSE to the game's main window — a graceful close request (like clicking the window's X). This allows the game to save and shut down properly instead of a forced Kill(), which could cause rollbacks.

Online count (Launcher Server)

The Launcher Server sends ONLINE_COUNT|N to the Launcher:

• Every 30 seconds — timer-based broadcast.
• On connect/disconnect — real-time update.
• Count uses max(connectedClients.Count, DB count) when DB has a higher value.

The Launcher calls window.setOnlineCount(count) so the WebView updates.

Required HTML Structure

Index page

• IDs: #close, #minimize, #openSettings, #openGame.
• Links: use class="openLink" on <a href="url"> elements. On click, send openLink with the href value.
• Window mode: #window checkbox.
• Progress: .progress-bar (width in %), .progressBar strong or similar for status text, span.status for speed.
• Online count: {{ONLINE_COUNT}} placeholder (replaced on first call) or elements with class .launcher-online-count.
• Window drag: attach mousedown to your title bar / drag region. Call sendMessage('dragWindow'). Exclude inputs/buttons.

Settings page

• Fields: #resolution, #color, #sound, #music, #username, #language, #window.
• Button: #saveSettings.

Minimal Template Example

A minimal index page structure. Your CSS can style it however you like.

<!-- Minimal index.html structure -->
<div class="titlebar">
  <span id="close">×</span>
  <span id="minimize">−</span>
  <span class="drag-region">Launcher</span>
</div>
<div class="content">
  <a href="https://example.com" class="openLink">Link</a>
  <button id="openSettings">Settings</button>
  <div class="progressBar">
    <div class="progress-bar" style="width:0%"></div>
    <strong>Checking...</strong>
    <span class="status"></span>
  </div>
  <label><input type="checkbox" id="window"> Window mode</label>
  <button id="openGame" disabled>Open Game</button>
  <span class="launcher-online-count">0</span> online
</div>
<script>
function sendMessage(action, value = '') {
  window.chrome.webview.postMessage(JSON.stringify({ action, value }));
}
window.updateDownloadProgress = (p, s) => {
  document.querySelector('.progress-bar').style.width = p + '%';
  document.querySelector('.status').textContent = s || '';
  if (p >= 100) document.querySelector('#openGame').disabled = false;
};
window.updateProgressText = (t) => { document.querySelector('.progressBar strong').textContent = t; };
window.setWindowMode = (m) => { document.querySelector('#window').checked = m === 1; };
window.setOnlineCount = (n) => { document.querySelectorAll('.launcher-online-count').forEach(el => el.textContent = n); };
document.addEventListener('DOMContentLoaded', () => {
  document.querySelector('#close').onclick = () => sendMessage('close');
  document.querySelector('#minimize').onclick = () => sendMessage('minimize');
  document.querySelector('#openSettings').onclick = () => sendMessage('openSettings');
  document.querySelector('#openGame').onclick = () => sendMessage('openGame');
  document.querySelector('#window').onchange = (e) => sendMessage(e.target.checked ? 'checked' : 'unchecked');
  document.querySelectorAll('.openLink').forEach(link => link.onclick = (e) => { e.preventDefault(); sendMessage('openLink', link.href); });
  document.querySelector('.drag-region').onmousedown = () => sendMessage('dragWindow');
  window.chrome.webview.addEventListener('message', e => {
    if (e.data?.type === 'windowMode') window.setWindowMode(e.data.value);
  });
  sendMessage('index-data');
});
</script>

Quick Reference

function sendMessage(action, value = '') {
  window.chrome.webview.postMessage(JSON.stringify({ action, value }));
}
sendMessage('close');
sendMessage('openLink', 'https://example.com');
sendMessage('checked');  // window mode on
sendMessage('unchecked'); // fullscreen
